The Inzonex Industrial Heat-Loss Calculator is a free ASTM C680 tool that estimates how much heat bare hot pipes, valves, tanks and vessels lose — and how much energy, money and CO₂ removable insulation saves. Compare bare vs. insulated, see surface temperature and payback in €/$/£, NPS or DN sizing, results update live.
| Item | Area m² | Saved kW | MWh/yr | €/yr | t CO₂/yr | Invest € |
|---|
The calculator uses the steady-state heat-transfer method of ASTM C680 and ISO 12241 — the same basis as the industry-standard 3E Plus tool — applied to removable Inzonex insulation. Below: the physics, the numbers that drive payback, and where bare equipment quietly burns money.
A bare metal pipe surface sits at roughly process temperature, so its loss is governed only by the outer film: Q/L = hₒ·π·D·ΔT. With a combined coefficient hₒ≈10 W/m²·K, a DN50 (2″) line at 150 °C in 20 °C air loses about 250 W/m.
Add 50 mm insulation and conduction dominates: Q/L = ΔT / [ ln(r₂/r₁)/(2πk) + 1/(hₒ·π·D₂) ]. Loss falls to ~32 W/m — an ≈87% cut.

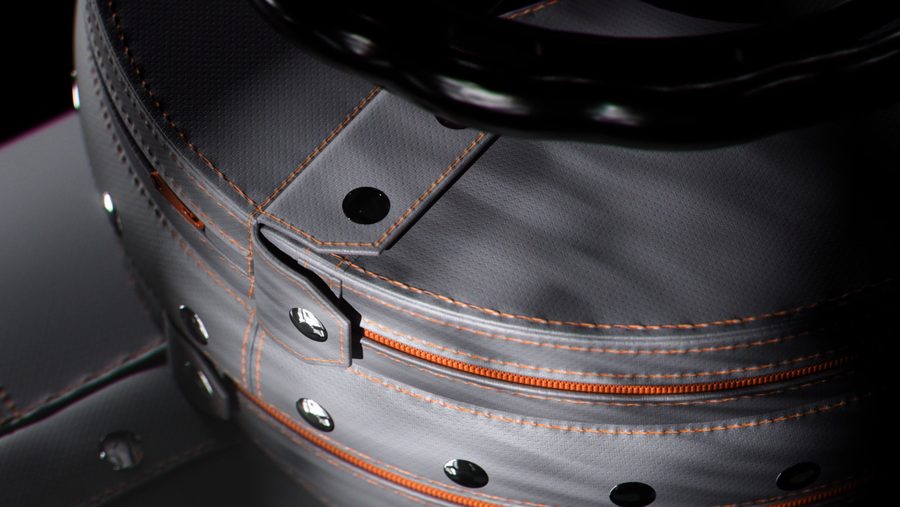

An uninsulated valve or flange radiates like 0.5–1 m of bare pipe. A handful of bare valves on a line can equal the loss of the whole insulated run. Because their geometry is awkward, they're usually left bare — which is exactly why removable insulation pays back fastest here.
The calculator adds each valve as an equivalent bare-pipe length, so you see their true cost.
Burn-risk guidance (ASTM C1055, EN ISO 13732-1, OSHA) flags surfaces above ~60 °C / 140 °F. A bare 150 °C pipe is a serious burn hazard; 50 mm of insulation brings the surface to about 26 °C — touch-safe — and Inzonex modular insulation typically targets ≤45 °C.
The result panel flags whether your insulated surface is touch-safe.
Annual saving = heat saved × operating hours ÷ system efficiency × energy price. A single insulated DN50 run with valves can save ~€7,400/yr and ~21 t CO₂/yr, paying back in about 10–11 months.
Across a plant the numbers compound fast — use Add to project to total a whole site.
Send us your equipment list (pipes, valves, tanks, exchangers, vessels) and we'll return a full heat-loss study with element-by-element savings, surface temperatures and a fixed price for removable insulation — the same format we use on HRSG, food and chemical plant projects.
Get an exact quote →
Common questions about pipe and equipment heat-loss calculation, insulation thickness and payback.
A bare DN50 (2″) steam line at 150 °C in 20 °C still air loses roughly 250 W per metre. Over 50 m plus four valves that's about 13 kW — around 100 MWh of fuel a year. Removable insulation cuts this by about 87%.
50 mm of mineral wool (k≈0.04 W/m·K) reduces heat loss by roughly 87% and brings the surface to about 26 °C — touch-safe. Thicker insulation gives diminishing returns; the calculator shows the trade-off live as you change thickness.
Payback = installed insulation cost ÷ annual energy saved in money. Annual saving = heat saved (W) × operating hours ÷ system efficiency × energy price. Industrial removable insulation on hot lines typically pays back in 9–24 months.
Yes — it uses the ASTM C680 / ISO 12241 steady-state method for cylindrical (pipes, shells), flat (walls, tanks) and spherical (heads) geometries, with a combined outer surface coefficient. Results are survey-grade estimates; confirm critical numbers with a site survey.
Personnel-protection guidance (ASTM C1055, EN ISO 13732-1, OSHA) puts the burn-risk threshold around 60 °C / 140 °F. Inzonex modular insulation typically achieves ≤45 °C on hot equipment. The calculator flags whether the insulated surface is touch-safe.
A bare valve or flange loses about as much heat as 0.5–1 m of bare pipe — roughly 150 W each on a DN50 line at 150 °C. A few bare valves can equal the loss of a whole insulated run, so removable valve & flange insulation pays back fastest. The calculator adds each valve as an equivalent bare-pipe length.
Tanks and vessels are modelled by surface area — flat walls as a flat plate, dished heads as a sphere (ASTM C680). A bare 80 °C tank wall in 20 °C air loses about 600 W/m² (hₒ·ΔT); 50 mm of insulation cuts that by ~85%. Enter the surface area, temperature and insulation thickness on the Flat surface or Vessel tab.
Results read in W and W/m, total kW, and annual kWh / MWh, plus money saved and CO₂ avoided. For US units, 1 W/m ≈ 1.04 BTU/hr·ft and 1 kW ≈ 3,412 BTU/hr. Energy is shown in your own currency (€, $, £) at the price you enter.
NPS (½″–16″) and DN (DN15–DN400) are just two labels for the same outer pipe diameter — DN50 is 2″, DN100 is 4″. Pick whichever your spec uses; the heat-loss result is identical. Switch the sizing standard at the top of the calculator.
Yes — add multiple items across pipes, flat surfaces, heat exchangers and vessels into one project for a whole-site total of energy, cost and CO₂. For a full equipment list and an exact quote, send your data to Inzonex for a heat-loss report.
